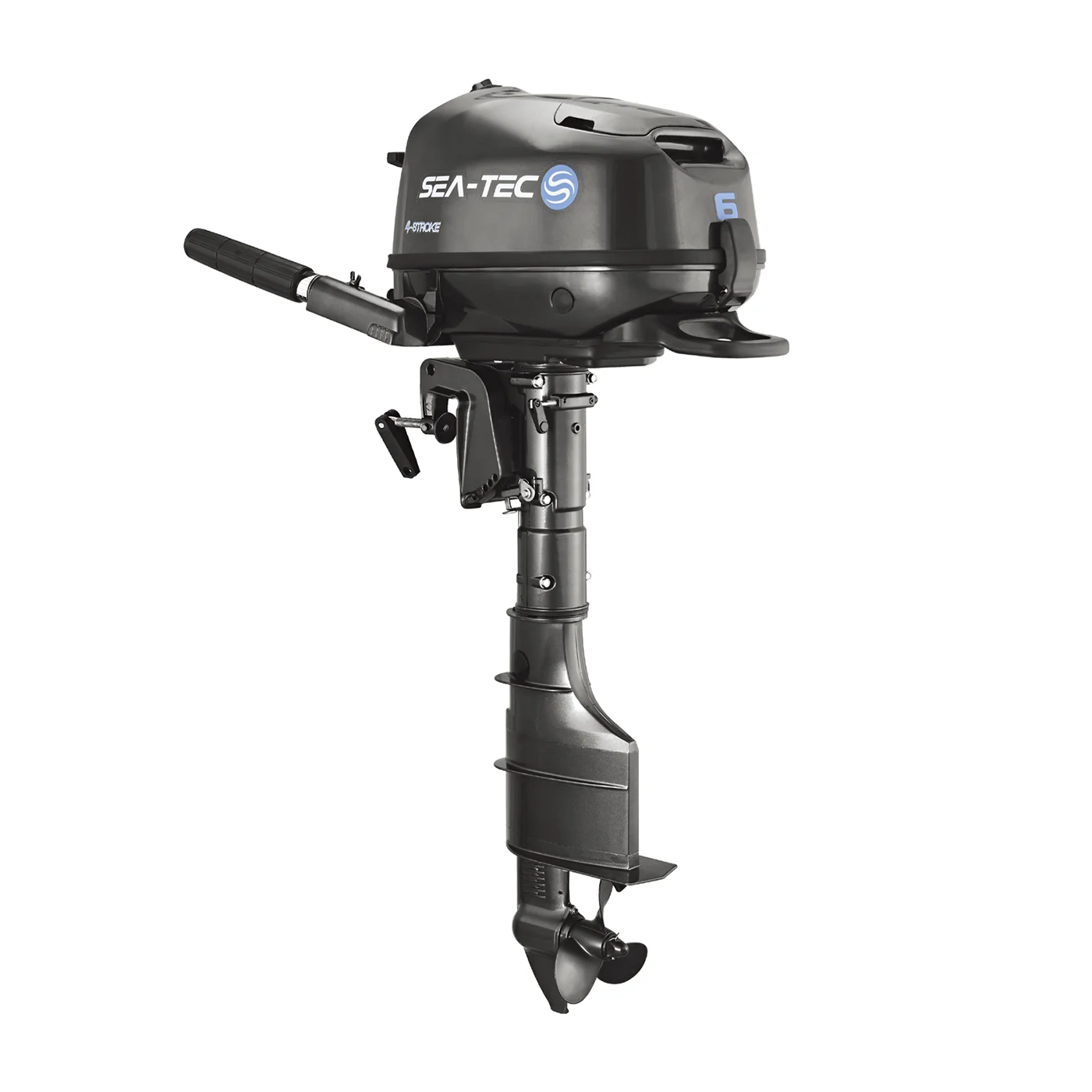

PNF6

Four-Stroke Outboard
  • Cylinder Number: 1
  • Displacement: 139cc
  • Bore * Stroke: 62x46mm
  • Max Output: 6hp/5500rpm
  • Dry Weight:27kg
Prev
PNF4
Next
PNF9.9

Specifications

CharacteristicsPNF6PNF4
Motor Type1 Cylinder1 Cylinder
Displacement139cc139cc
Bore*stroke62*46mm62*46mm
Compression Ratio8.98.9
Full Throttle Speed Range4500-55004000-5000
Max.Prop Shaft Output4.4kW(6HP) @5000rpm2.9kW(4HP) @4500rpm
Fuel/induction SystemOHVOHV
IntakeNaturally aspiratedNaturally aspirated
ExhaustThrough PropellerThrough Propeller
CoolingWaterWater
Ignition SystemGDIGDI
Alternator Output//
StarterManualManual
Engine Oil Capacity0.6L0.6L
Gear Ratio2.082.08
Gear ShiftF-N-RF-N-R
Transom HeightS: 440mm
L: 567mm
S: 440mm
L: 567mm
Dry Weight28kg28kg
Steering Angle(maximum)±90°±90°
fuel tank12L(outside)/1.1L(inside)12L(outside)/1.1L(inside)
